Product Summary

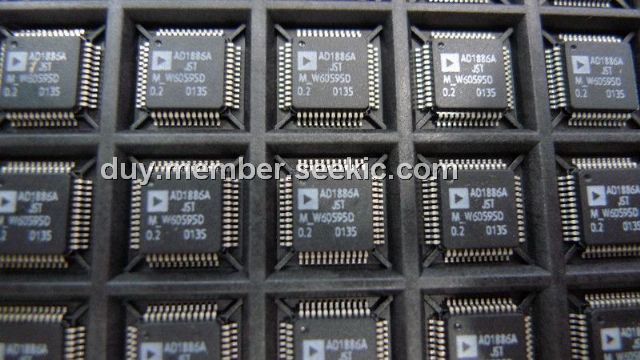

The AD1886AJST is an interface circuit.
Parametrics
AD1886AJST absolute maximum ratings: (1)Power Supplies, Digital (DVDD): –0.3 to +3.6 V; Analog (AVCC): –0.3 to +6.0 V; (2)Input Current (Except Supply Pins): ±10.0 mA; (3)Analog Input Voltage (Signal Pins): –0.3 to AVDD + 0.3 V; (4)Digital Input Voltage (Signal Pins): –0.3 to DVDD + 0.3 V; (5)Ambient Temperature (Operating): 0 to 70℃; (6)Storage Temperature: –65 to +150℃.
Features
AD1886AJST features: (1)20-Bit SPDIF Output w/32 kHz, 44.1 kHz, and 48 kHz Symbol Rates; (2)Full Duplex Variable Sample Rates from 7040 Hz to 48 kHz with 1 Hz Resolution; (3)Jack Sense Pins Provide Automatic Output Switching; (4)Software-Enabled VREFOUT Output for Microphones and External Power Amp; (5)Split Power Supplies (3.3 V Digital/5 V Analog); (6)Mobile Low-Power Mixer Mode; (7)Extended 6-Bit Master Volume Control; (8)Extended 6-Bit Headphone Volume Control; (9)Digital Audio Mixer Mode; (10)Phat Stereo 3D Stereo Enhancement.

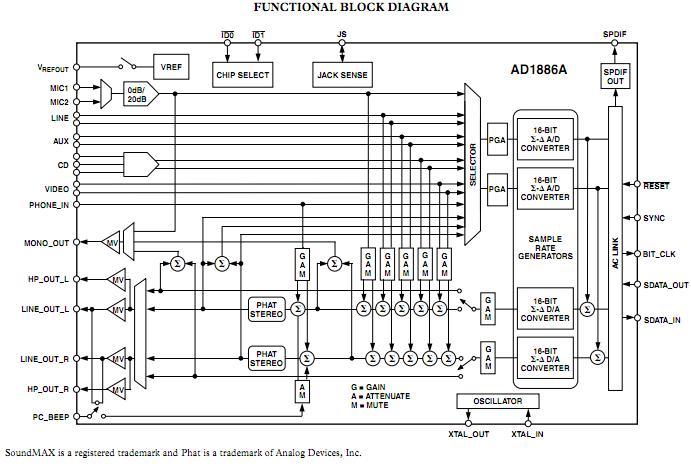

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD1886AJST |
Analog Devices Inc |
IC CODEC STEREO 16BIT 48LQFP |
Data Sheet |
Negotiable |
|
||||||
|
AD1886AJST-REEL |
Analog Devices Inc |
IC CODEC STEREO 16BIT 48LQFP TR |
Data Sheet |
Negotiable |
|
||||||
|
AD1886AJSTZ |
Analog Devices Inc |
IC CODEC STEREO 16BIT 48LQFP |
Data Sheet |
|
|
||||||
 |
AD1886AJSTZ-RL |
Analog Devices Inc |
IC CODEC STEREO 16BIT 48LQFP |
Data Sheet |
|
|
||||||
