Product Summary

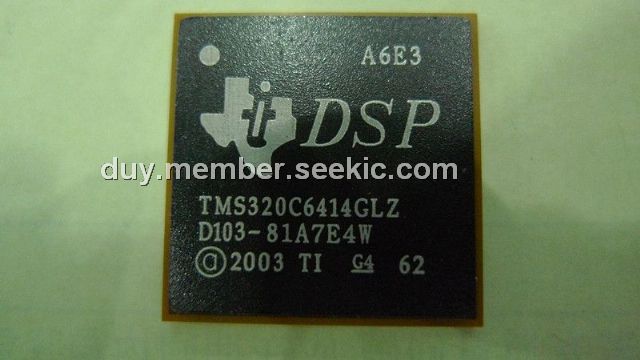

The TMS320C6414EGLZA6E3 is a kind of fixed-point digital signal processor, which is the highest-performance fixed-point DSP generation in the TMS320C6000 DSP platform. The TMS320C6414EGLZA6E3 is based on the second-generation high-performance, advanced VelociTI very-long-instruction-word (VLIW) architecture (VelociTI.2) developed by Texas Instruments (TI), making the DSP an excellent choice for multichannel and multifunction applications. The TMS320C6414EGLZA6E3 is a code-compatible member of the C6000 DSP platform.
Parametrics
TMS320C6414EGLZA6E3 absolute maximum ratings: (1)Supply voltage ranges: CVDD: 0.3 V to 18 V; DVDD: 0.3 V to 4 V; (2)Input voltage ranges: (except PCI), VI: 0.3 V to 4 V; (3)Output voltage ranges: (except PCI), VO: 0.3 V to 4 V; (4)Operating case temperature ranges, TC: 40℃ to105℃; (5)Storage temperature range, Tstg: 65℃ to 150℃.
Features
TMS320C6414EGLZA6E3 features: (1)Highest-Performance Fixed-Point Digital Signal Processors (DSPs); (2)VelociTI.2 Extensions to VelociTI Advanced Very-Long Instruction-Word (VLIW) TMS320C64x DSP Core; (3)L1/L2 Memory Architecture; (4)Two External Memory Interfaces (EMIFs); (5)Enhanced Direct-Memory-Access (EDMA) Controller (64 Independent Channels); (6)Host-Port Interface (HPI); (7)Three Multichannel Buffered Serial Ports; (8)Three 32-Bit General-Purpose Timers; (9)Sixteen General-Purpose I/O (GPIO) Pins; (10)Flexible PLL Clock Generator; (11)IEEE-1149.1 (JTAG); (12)Boundary-Scan-Compatible; (13)532-Pin Ball Grid Array (BGA) Package; (14)(GLZ and ZLZ Suffix), 0.8-mm Ball Pitch; (15)0.13-μm/6-Level Cu Metal Process (CMOS); (16)3.3-V I/Os, 1.2-V/1.25-V Internal (500 MHz); (17)3.3-V I/Os, 1.4-V Internal (600 and 720 MHz).

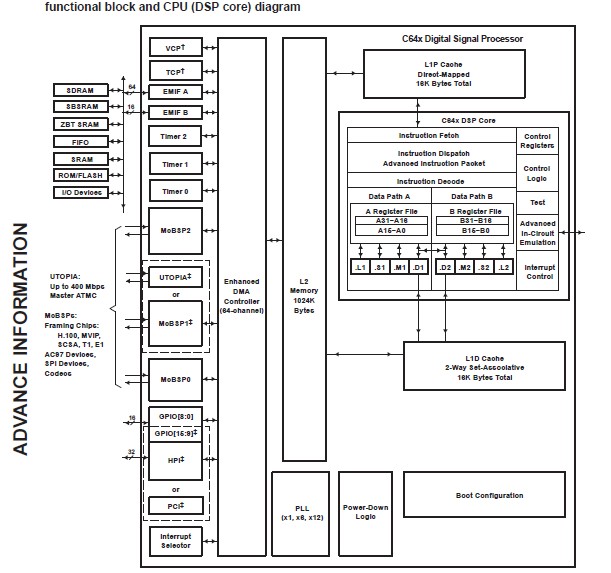

Diagrams
 |
