Product Summary

The TPS76912DBV is a low-dropout (LDO) voltage regulator. It offers the benefits of low dropout voltage, ultralow-power operation, and miniaturized packaging. The TPS76912DBV features low dropout voltages and ultralow quiescent current compared to conventional LDO regulators. Offered in a 5-terminal small outline integrated-circuit SOT-23 package, the TPS76912DBV is ideal for micropower operations and where board space is at a premium.

Parametrics

TPS76912DBV absolute maximum ratings: (1)Input voltage range: –0.3 V to 13.5 V; (2)Voltage range at EN: –0.3 V to VI + 0.3 V; (3)Voltage on OUT, FB: 7 V; (4)Peak output current: Internally limited; (5)ESD rating, HBM: 2 kV; (6)Operating virtual junction temperature range, TJ: –40 to 150℃; (7)Storage temperature range, Tstg: –65 to 150℃.

Features

TPS76912DBV features: (1)100-mA Low-Dropout Regulator; (2)Available in 1.2-V, 1.5-V, 1.8-V, 2.5-V, 2.7-V, 2.8-V, 3.0-V, 3.3-V, and 5-V Fixed-Output and Adjustable Versions; (3)Only 17 μA Quiescent Current at 100 mA; (4)1 μA Quiescent Current in Standby Mode; (5)Dropout Voltage Typically 71 mV at 100mA; (6)Over Current Limitation; (7)–40 to 125℃ Operating Junction Temperature Range; (8)5-Pin SOT-23 (DBV) Package.

Diagrams

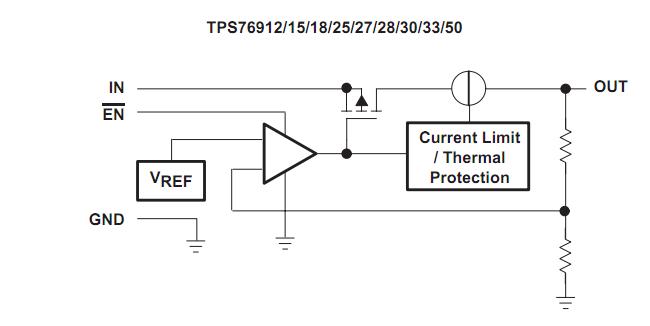

TPS76912DBV functional block diagram
