Product Summary

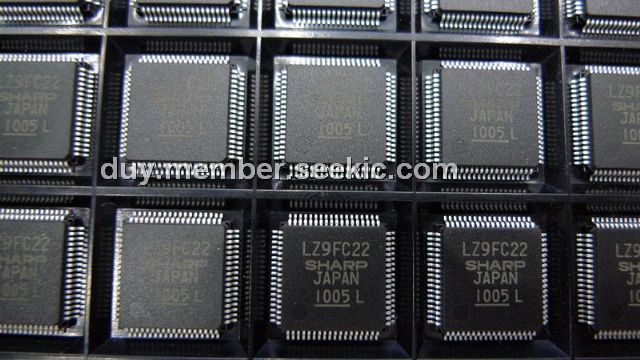

The LZ9FC22 is a timing Control IC for TFT - LCD module.
Parametrics
LZ9FC22 absolute maximum ratings: (1)Supply voltage VDD: -0.3 ~ 6.0 V; (2)Input voltage VI: -0.3 ~ VDD+0.3 V; (3)Output voltage VO: -0.3 ~ VDD+0.3 V; (4)Operating temperature Topr: -30 ~ +85℃; (5)Strage temperature Tstg: -55 ~ +150℃.
Features

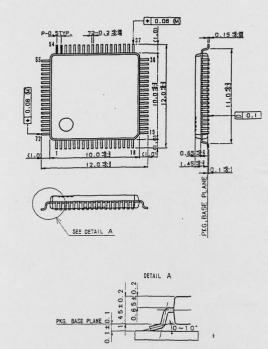

LZ9FC22 features: (1)Process: CMOS; (2)Wafer substrate: P-type silicon substrate; (3)Package: 72QFP(0.5mm pin pitch); (4)Operating Temperature: -30 ~ +85℃; (5)Propagation delay time: 1ns/gate (Condition : VDD=3.3V, Topr=25℃).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LZ9FC22 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
LZ9FC22 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
LZ9FC23 |
Sharp Microelectronics |
LCD Graphic Display Modules & Accessories ASIC/LQ035Q7DB02 DB03DH01 |
Data Sheet |
|
|
||||||
|
LZ9FD34 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
LZ9FD534 |
Sharp Microelectronics |
LCD Graphic Display Modules & Accessories ASIC/LQ030B7DD01T&R |
Data Sheet |
Negotiable |
|
||||||
