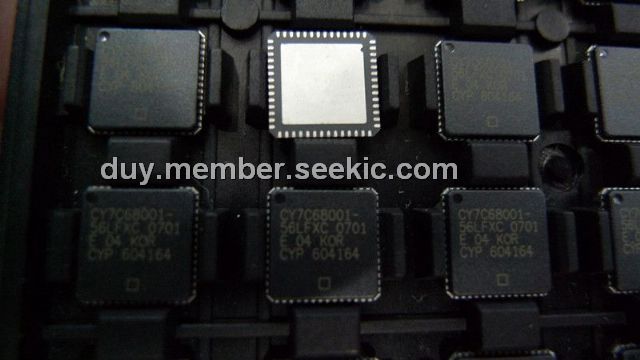

CY7C68001-56LFXC

EZ-USB SX2 USB interface device, 3.3V, 936 mW, 5V Tolerant I/Os, QFN

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~2.50

PartNumber:: CY7C68001-56LFXC

Brand:: Cypress Semiconductor - Cypress | Pack: QFN | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. alan's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-25

From Other Seller

Part Number:CY7C68001-56LFXC
US $2.00 - 2.50
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The CY7C68001-56LFXC is a kind of EZ-USB SX2 USB interface device, which is designed to workwith any external master, such as standard microprocessors,DSPs, ASICs, and FPGAs to enable USB 2.0 support for anyperipheral design. The CY7C68001-56LFXC has a built in USB transceiver and SerialInterface Engine (SIE), along with a command decoder forsending and receiving USB data. The typical applications of CY7C68001-56LFXC include: DSL modems, ATA interface, Memory card readers, Legacy conversion devices, Cameras Scanners, Home PNA, Wireless LAN MP3 players and Networking Printers.

Parametrics

CY7C68001-56LFXC absolute maximum ratings:(1)Storage Temperature :65℃ to +150℃; (2)Ambient Temperature with Power Supplied:0℃ to +70℃; (3)Supply Voltage to Ground Potential :0.5V to +4.0V; (4)DC Input Voltage to Any Pin :5.25V; (5)DC Voltage Applied to Outputs in High-Z State : 0.5V to VCC+ 0.5V; (6)Power Dissipation :936 mW; (7)Static Discharge Voltage:> 2000V.

Features

CY7C68001-56LFXC features: (1)USB 2.0-Certified Compliant: On the USB-IF Integrators List: Test ID Number 40000713; (2)Operates at High (480 Mbps) or Full (12 Mbps) Speed; (3)Supports Control Endpoint 0: Used for handling USB device requests; (4)Supports Four Configurable Endpoints that share a 4-KBFIFO Space: Endpoints 2, 4, 6, 8 for application-specific control and data; (5)Standard 8- or 16-bit External Master Interface: Glueless interface to most standard microprocessors DSPs, ASICs, and FPGAs;Synchronous or Asynchronous interface; (6)Integrated Phase-locked Loop (PLL); (7)3.3V Operation, 5V Tolerant I/Os; (8)56-pin SSOP and QFN Package; (9)Complies with most Device Class Specifications.
